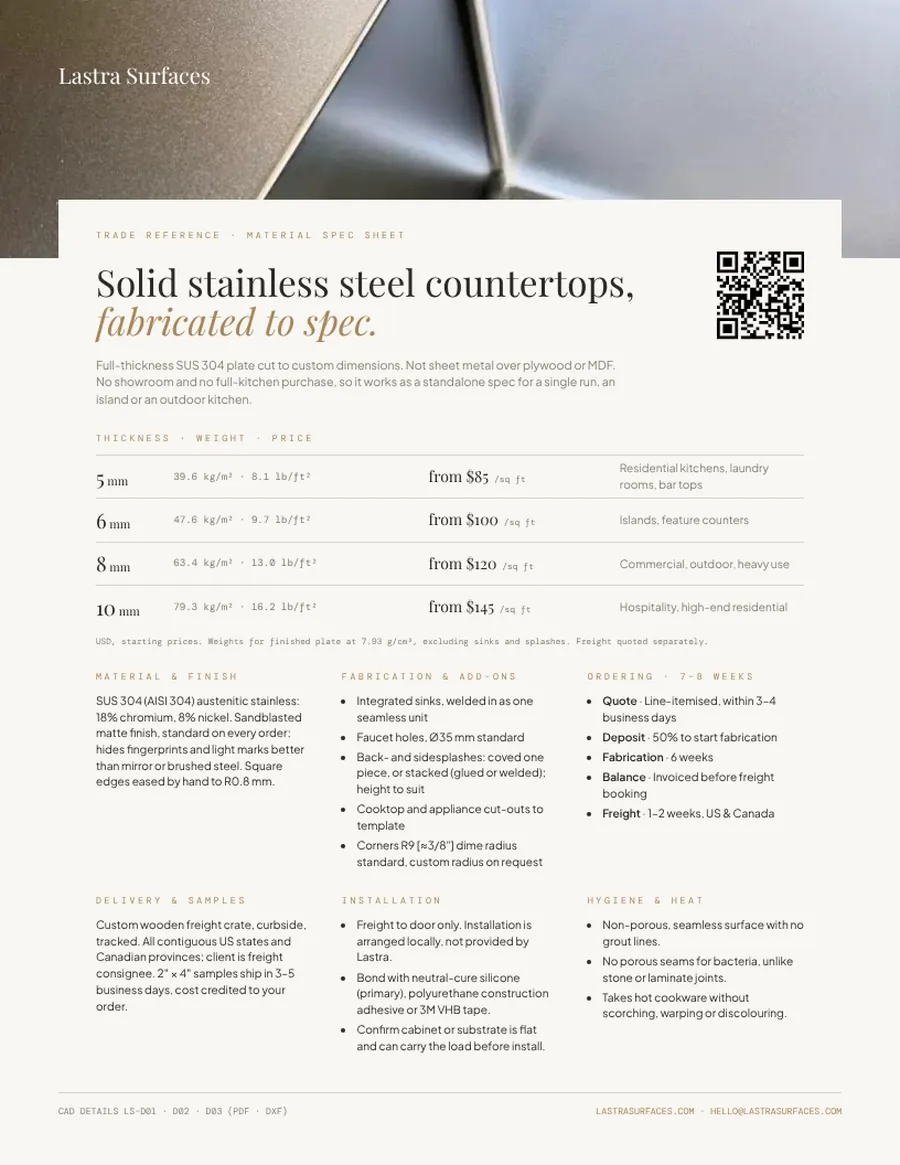

Material spec sheet
Thicknesses, weights, pricing, finish, add-ons, lead time and installation notes on one page.
For designers & trade
Drawings for specifiers.
Our spec sheet and CAD details, drawn from our fabrication standards. PDF for print, DXF for AutoCAD, Revit, SketchUp, Rhino and Vectorworks. Free to download, no sign-up.
Solid SUS 304 · 5 / 6 / 8 / 10 mm
PDF for print · DXF for CAD
Millimetres [inches]
Rev 1 · October 2026
PDF for print · DXF for CAD
Millimetres [inches]
Rev 1 · October 2026

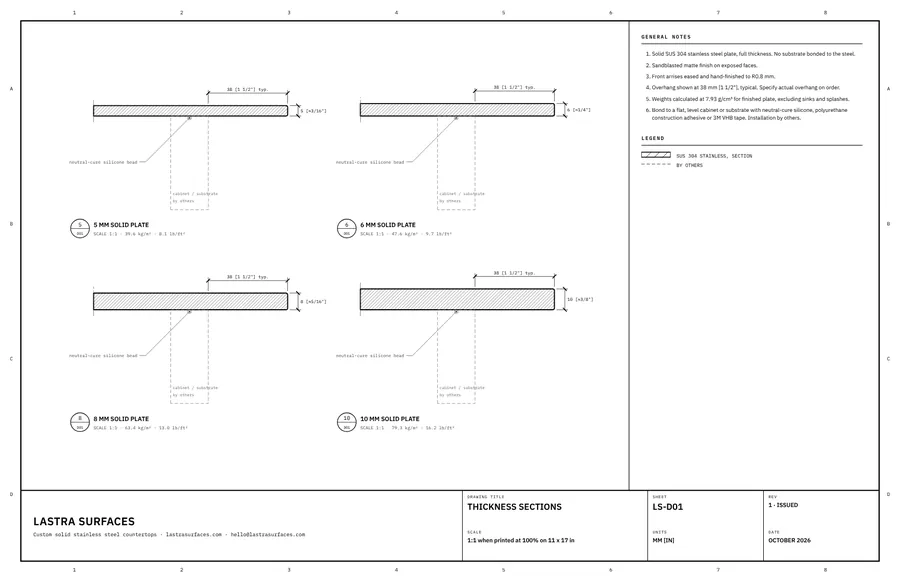

Thickness sections
5, 6, 8 and 10 mm plate in section with the overhang and weights. Prints at actual size.

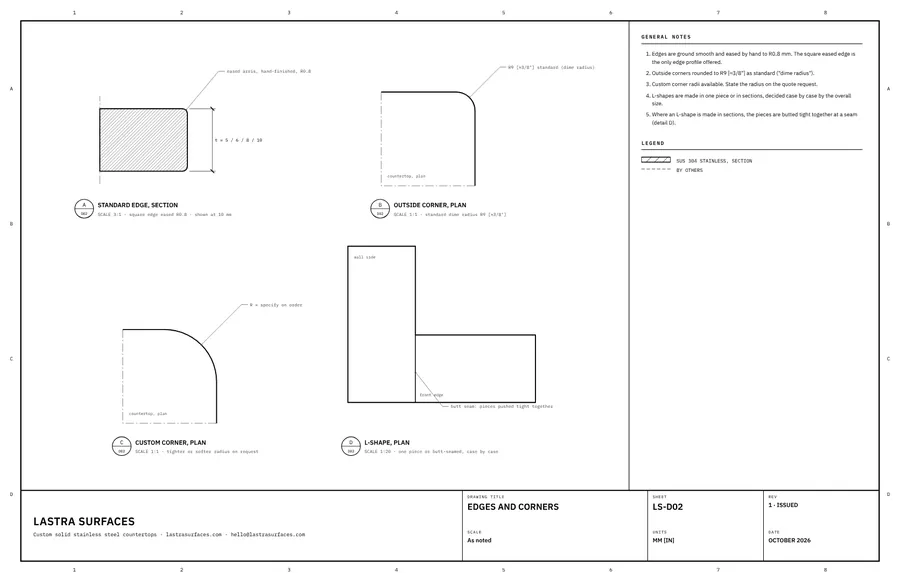

Edges and corners
The R0.8 eased square edge, R9 dime-radius standard corner, custom corner radius and L-shape seams.

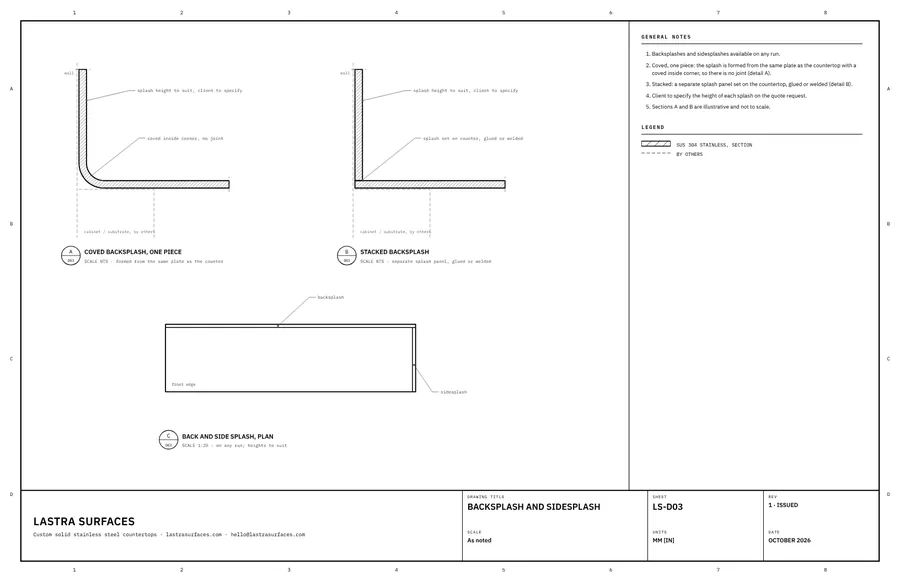

Backsplash and sidesplash
Coved one-piece and stacked splashes, glued or welded, with back and side splash in plan.
Ready to price a project?
Send your measurements or drawings and we'll return a line-itemised quote within 3–4 business days.
Need a detail we don't show, or a DWG file? Email hello@lastrasurfaces.com with your project and we'll help.
